How to calibrate the working table to level.

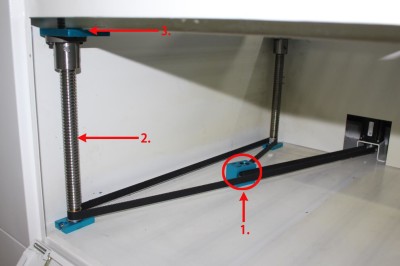

There are three cases. 1. Two sides of the working table are not of the same height. Turn off the whole machine power, manually pull one of the belts of Z axis so as to adjust the up and down of the working table height of this side and calibrate the level in this way. […]

Some point of the same piece of materials can not be cut through, why

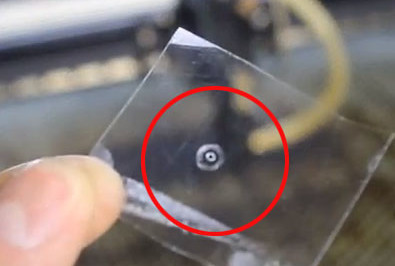

Some point of the same piece of materials cannot be cut through, why? This problem is mainly caused by following three reasons: 1. The cutting material is bent (not flat) or uneven density. 2. The working table is not level 3. Laser beam is not vertical after being focused by lens. 1. If the material […]

Why the laser has no laser beam?

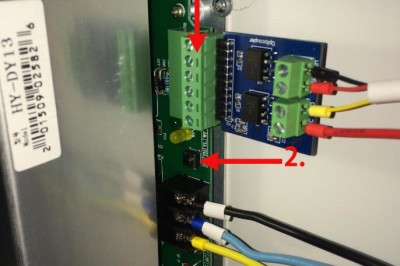

Following reasons cause the failure of laser working (has no laser beam) 1. Cooling system problem (includes water chiller) 2. Laser power supply (optical coupled isolator) or Laser tube 3. Wiring or Controller 1. If there shows “water protection errors, work pauses” on the control panel. 1) Pease check interfaces of water flow(ALARM OUTLET), see […]

Why the Y axis cannot work suddenly?

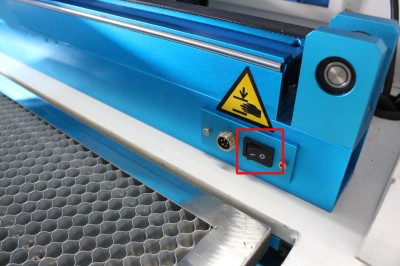

1. Please check if the rotary switch is turned on,like below: PS: Turning to “O” off means all is normal. If it is “-“, please turn off to “O” and press the reset on control panel. 2. if the rotary axis switch is off and the problem still exist, please check the Y axis driver, […]

Why does the cutting and engraving graphics reverse (mirror)

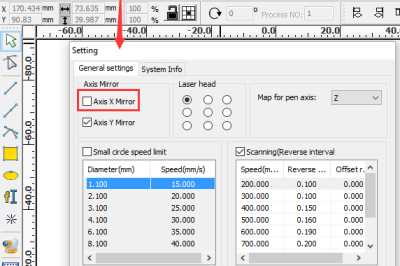

This problem may cause from improper setting of the software. Please start up the laser software RDWorksV8. And then click “Config” – “system setting” on the menu bar. This dialog box appears. Make sure “Axis X mirror” is unticked, and “Axis Y Mirror” is must ticked. If your setting is different from this, this is […]

How to run several laser machines with one PC

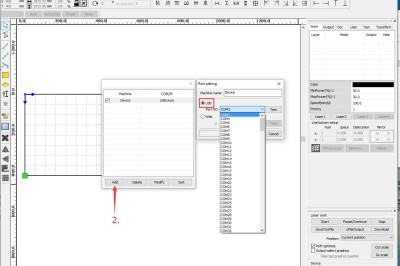

If there are several USB interfaces with your PC, it’s able for one PC (laser software) to connect with several machines. But pc will does only communicate with one machine and sending the file into the laser in the same time For USB connection as below 1. When connecting with the first machine, it’s connected […]

How to install the CorelDraw plugin for RDWorks

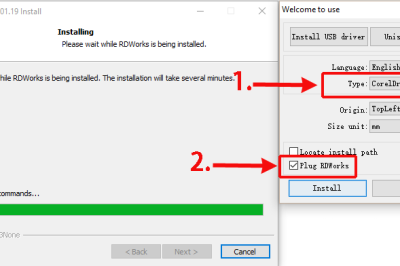

1. Firstly run CorelDraw and set the parameter following below instructions: 2. After that, close CorelDraw. Double click to open RDWorks installation program. Choose the type of CorelDraw_Laser (be sure the RDWorks main program has been already installed), and then tick the item RDworks, as shown below: Click “install” and wait to compete the installation. […]

How to import PDF files into RDWorks

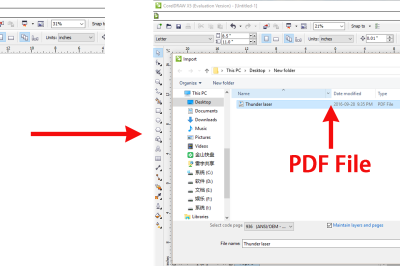

1. RDWorks cannot read PDF and open it directly. 2. Use CorelDraw to open/import PDF file. Then save the graphic as DXF file. Like below: 3. Then RDWorks can read the DXF file, Just import the DXF file into RDWorks directly. 4. The other way is open/import PDF file with CorelDraw,use the plugin button “Laser […]

Wrong proportions from RDWorks

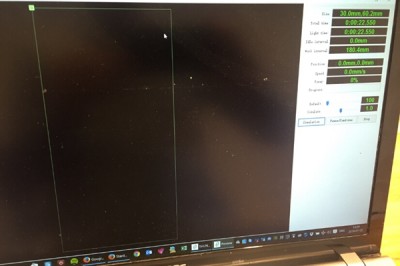

I’d like to cut a Rectangle at 30x30mm, however, it become 30×60.2 in simulation and in laser, Please make sure “Enable rotate engrave” is not ticked. Popular Pages Click to visit Click to visit Click to visit
